Cost-Effective Carbon Steel GGC Valves Acc. DIN- and ASME Standard

Cost-Effective Carbon Steel GGC Valves Acc. DIN- and ASME Standard

We have extended our portfolio by cost-effective flanged valves made of cast steel according to DIN- and ASME standard and now offer the following valves from the manufacturer SUN.E as stock items.

  • Gate Valves
  • Globe Valves
  • Check Valves

The manufacturer Jiangsu SUN.E Valve Co. Ltd. based in China was approved more than 10 years ago by a comprehensive AVA supplier qualification process. All valves were recalculated according to EN 12516-2 by TÜV and thus comply with the most common “Valve Standards” in Germany and Europe.

Especially for projects and also MRO contracts were not only the high quality requirement but also the cost effectiveness regarding to “Savings & Sustainability” plays a significant role, these products are perfectly applicable and have been already proved very well.

The manufacturer SUN.E is extensively certified and meets with its GGC Valves the requirements of the standards according to AD 2000 A4, PED 2014/68 / EU, ATEX 2014/34 / EU and TA-Luft 2002 / VDI2440 and ISO 15848-1 (BH).


The main applications of these valves are media in the fields of oil and gas, petrochemical, chemical and power plant applications. However, this valve is also suitable for use in other industries such as district heating as well as mechanical Engineering – EPC business.


The following specification we keep in stock:

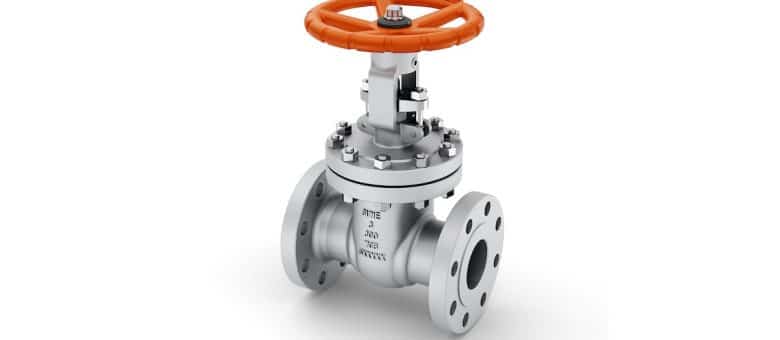

Gate Valves

Size range DN50-DN500 / 2″ – 16″
Pressure class PN10-PN100 /150# – 600#
Face to face EN558, Serie 15 & 26 / ASME B16.10

Globe valves

Size range  DN50-DN200 / 2″ – 10″
Pressure class PN10-PN40 / 150# – 300#
Face to face EN558, Serie 1 / ASME B16.10

Check valves

Size range DN50-DN300 / 2″ – 12″
Pressure class PN10-PN40 / 150# – 300#
Face to face  EN558, Serie1 & 48 / ASME B16.10

General information

Body & Bonnet/ Cover 1.0619/WCB
TRIM No. 8
Packing Graphit  ( TA-Luft approved)


  • AD 2000-A4
  • PED 2014/68/EU
  • ATEX 2014/34/EU
  • TA-Luft 2002/VDI2440
  • FE ISO 15848-1 Class BH
  • NACE MR0103-2005
  • NACE MR0175-2000

Click here to for more information about AVA Armaturen Vertrieb AlmsClick here for related articles and newsSearch for valve manufacturers in our Equipment Guide

Since the company was founded in 1972 AVA has been the leading wholesale supplier of industrial valves according to DIN and ASME standard in Europe. As an exclusive partner of manufacturers around the world for many years, we supply our customers in the chemicals, petrochemicals, Power industries sector and mechanical engineering industries with industrial …
